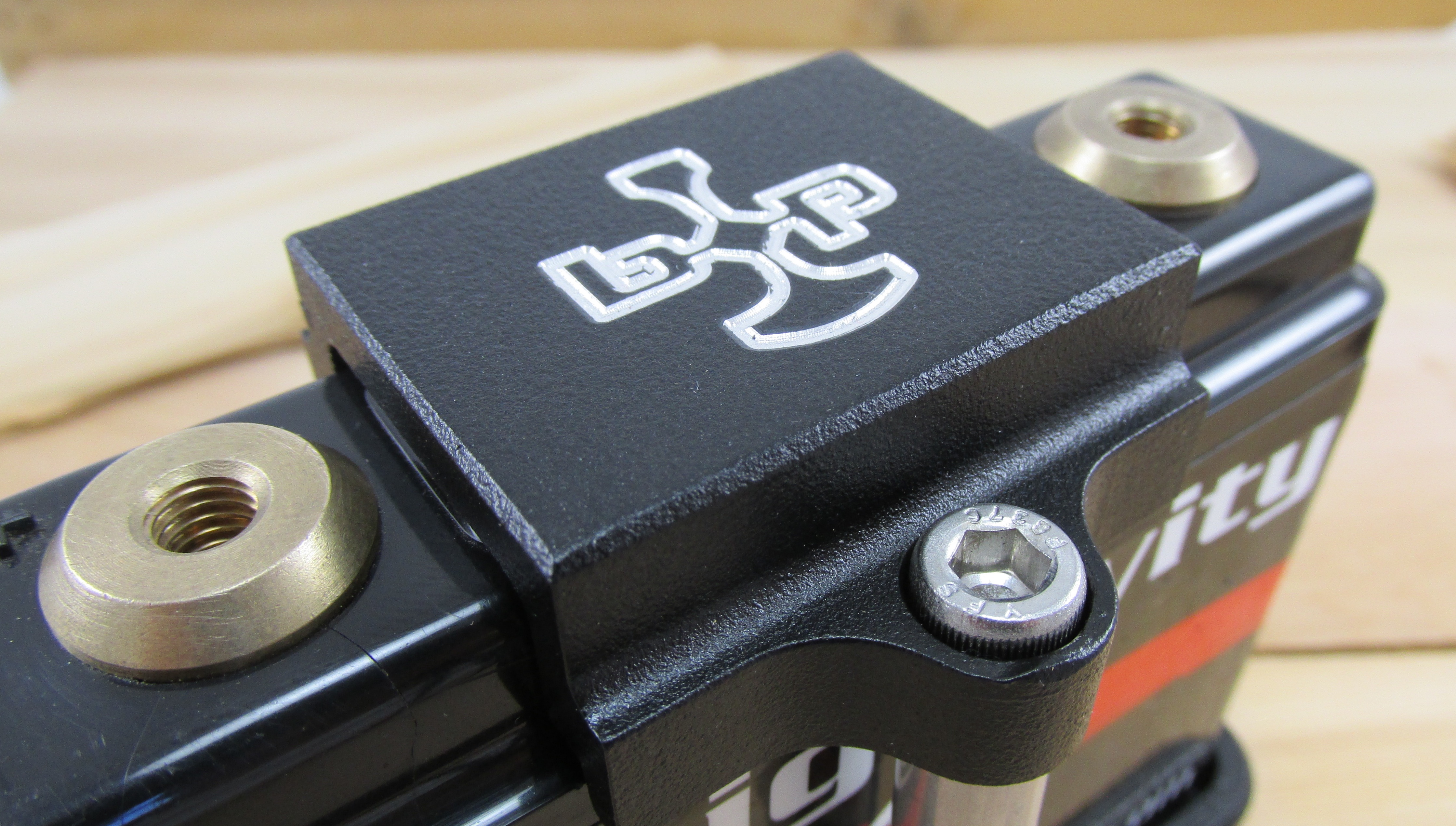

Now introducing completely Billet Battery Trays from Billet Proof Designs!
Machined from 6061 Aluminum and powder coated Textured Black (Also with optional black posts). This battery tray is intended for use with Antigravity Batteries Small Case 4 cell batteries (AG401 and XPS SC-1). Comes with Stainless Steel hardware. The top mount is positioned in a way that there is no chance of it shorting out on a terminal. All you have to do is drill and tap two holes and bolt the entire battery tray assembly to your bike. OR
Drill two holes and through-bolt the entire assembly. The stainless hardware is long enough to allow for this.
We also offer this battery tray with a pre-drilled and tapped mounting plate that can be cut to size and welded to fit just about any frame.
Optional Mounting Plate:
CNC laser cut from thick 10 Gauge HRPO Steel. Drilled and tapped to accept our Billet Battery Tray for 4 Cell Antigravity Batteries (AG401 and XPS SC-1). Simply cut it to length and weld it to your bike. The hardware with the kit is long enough that it will thread into this plate. At 14 inches long, the mounting options are endless...Dimensions:
(Assembled Battery Tray)
Length = 4-13/16"
Width = 2-3/8"
Height = 3-5/8"
Mounting Plate (Optional)
Length = 14"
Width = 2"
Width (Bump-Outs) = 2.636"
Thickness = .1345" (10 Gauge)
Finish:
Battery Tray: Powder Coated Textured Black
Mounting Plate: Uncoated Steel
Design:
Standard aluminum posts (Non-powder coated)
Black powder coated posts
Fitment:
Wide variety of Antigravity Batteries
